ARIS
.

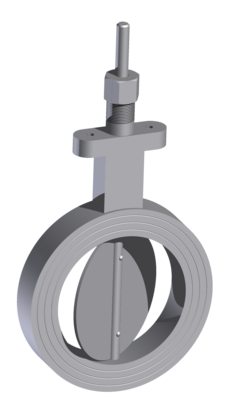

RD-K Butterfly Valve
To be mounted between flanges PN 6/10/16 Corpus with sealary grooves at the front surfaces External anti-corrosion painting Packing box and union nut made of brass High pressure packing box with graphite sealing
Body: GG25 or GGG40
Disc: St 37 or 1.4571
Shaft: 1.4305 or 1.4571
L5-RD Butterfly Valve
Ring design To be mounted between flanges acc. DIN 24154 Extended neck for insulation on request 2nd shaft end optional (for proximity switch etc.) Anti-corrosion painting High pressure packing box with graphite sealing Higher temperatures on request
Body: St37 painted
Disc: St37 painted
Shaft: 1.4305
L6-FD Flanged Butterfly Valve
Flange design With two welded-on flanges acc. DIN 24154 T2 R2 Extended neck for insulation on request 2nd shaft end optional (for proximity switch etc.) Anti-corrosion painting High pressure packing box with graphite sealing Higher temperatures on request
Body: St37
Disc: St 37
Shaft: 1.4305

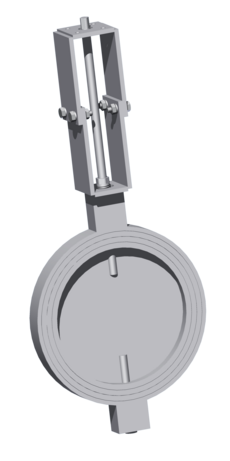

HT-L High-temperature Butterfly valve
Sturdy industrial design To be mounted between flanges PN 6/10/16 and ANSI Temperature extension optional High pressure packing box with graphite sealing 2nd shaft end optional (for proximity switch etc.)
Dimension: DN 50 - 500
Max. Temperature 800 °C
Body: 1.0570 or 1.4878
Disc: 1.0038 or 1.4878
Shaft: 1.0050 or 1.4878

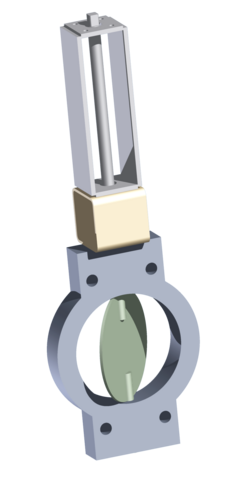

HT2-B High-temperature Butterfly valve
Sturdy industrial design To be mounted between flanges PN 6/10/16 and ANSI Exterior bushings on both sides from DN 450 Temperature extension optional High pressure packing box with graphite sealing Extended neck for insulation on request 2nd shaft end optional (for proximity switch etc.)
Dimension: DN 80 - 700
Max Temperature: 1.100 °C
Body: 1.4841
Disc: 1.4841
Shaft: 1.4841
